iPod3,1: Hinweise auf kommende iPod touch Generation entdeckt

Ben Miller 19

iPod touch 3G Bluetooth
Der User kewlgreen will in der aktuellen Firmware 3.0 Hinweise auf die kommende iPod touch Generation gefunden haben. „I was just looking around in SSH on my iPod Touch 2G Firmware 3.0 and i found the BlueTool init script for the iPod touch 3,1. Found in: /etc/bluetool/…“
  • BCM4325D0_004.001.007.0153.0155_N72_032609.hcd
  • BCM4329B1_002.002.023.0015.0016_Olympic_021809_37. 4MHz.hcd
  • iPhone1,1.boot.script
  • iPhone1,1.deepsleep.script
  • iPhone1,1.init.script
  • iPod2,1.boot.script
  • iPod2,1.deepsleep.script
  • iPod2,1.init.script
  • iPod3,1.boot.script
  • iPod3,1.deepsleep.script
  • iPod3,1.init.script
  • pcm-example.script
iPod touch 3G

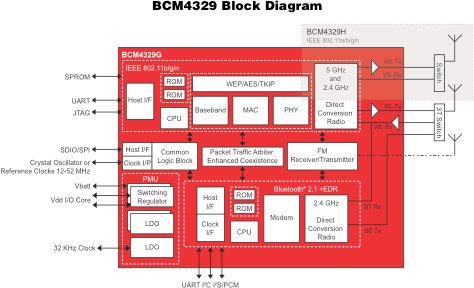

Diesen Informationen zufolge wird der iPod touch 3rd Gen über einen Broadcom BCM4329 Bluetooth 2.1+EDR Chip verfügen, welcher auch als FM-Empfänger agieren kann und mit dem WiFi Standard 802.11n kompatibel ist. Auch der im iPod touch 2G verbaute Broadcom Bluetooth Chip könnte als FM Radio Empfänger herhalten, Apple hat diese Funktion aber (noch) nicht aktiviert.

System Level Features:

  • Industry’s most integrated 65 nm single-chip combo device
    • Single-band (2.4 GHz) 802.11b/g/n or dual-band (2.4 GHz and 5 GHz) 802.11a/b/g/n with Bluetooth 2.1 + EDR and FM receiver and transmitter
    • Lowest overall cost solution
  • Full featured, on-chip Power Management Unit
    • Supports direct battery (2.3V to 5.5V) connection
  • Single driver software architecture for easy migration from existing to future embedded WLAN and Bluetooth devices
  • Integrates InConcert™ collaborative BT-WLAN coexistence with the industry’s most robust coexistence performance
  • Supports IEEE 802.15.2 external three-wire coexistence scheme enabling support for additional wireless  technologies like WiMax®
  • Bluetooth and FM Key Features
  • Bluetooth Core Specification Version 2.1 + EDR compliant with provisions supporting future specifications
    • Audio: PCM
    • FM Control: HCI and BSC (I2C-compliant) ports
    • FM Audio: Stereo analog input and output, bidirectional I2S, and PCM ports
  • Increased battery life (reduced in power consumption in all operating modes)
  • FM receiver and transmitter (76 MHz to 108 MHz FM bands);

Standards supported:

  • European Radio Data Systems (RDS)
  • North American Radio Broadcast Data System (RBDS)
  • Programmable FM transmit output power
  • Supports two simultaneous Advanced Audio Distribution Profiles (A2DP) for sharing music between two stereo

Bluetooth headsets

  • Wideband speech support
  • Packet Loss Concealment (PLC) for improved RF link budget to headsets
